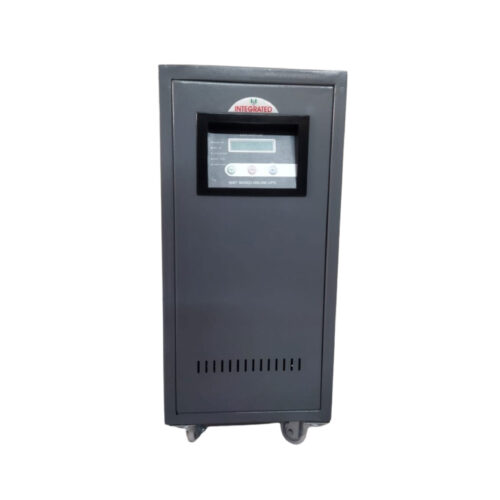

OE Online UPS 5 kVA to 20 kVA

View List

Submit Inquiry

Please fill in the below details and submit the form. We will get back to you shortly on your requirement.
Provide as much details as possible

Description



Frequency Range: 45.5-54 Hz

Input Power Factor: >0.8

Input Current Distortion: <5% THD in nominal load condition

Output Voltage: 230V ±1%

Output Frequency: 50 Hz ± 0.5 Hz

Load Power Factor: 0.7

Output Voltage Regulation: ±3%

Distortion: <3% (Linear Load); <5% (Non Linear Load)

Output Waveform: True Sine Wave

Crest Factor: 3:1

Overload Capability: 110% for 10 Sec.

Bypass: Manual bypass available

Efficiency: 86%

Audible Noise: < 55dB @ 1 m

Display: LED

Humidity: 90% RH or less (non-condensing)



Additional information

Weight N/A
Capacity

5 kVA 120/180 VDC, 6 kVA 192 VDC, 7.5 kVA 192 VDC, 10 kVA 192 VDC, 10 kVA (3/1) 240 VDC, 15 kVA (3/1) 288 VDC, 20 kVA (3/1) 288 VDC
